Jaybird False Bottom, Integrated Stand
for SS Brewtech 22-Quart (5.5 Gallon) Kettle
Use in Mash Tun or Boil Kettle
CHARACTERISTICS and SPECIFICATIONS:

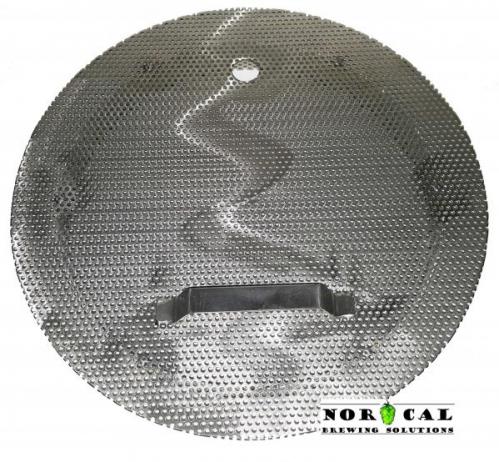

· 10-7/8” diameter false bottom. Heavy duty 16 gauge 304 stainless steel. 3/32” holes on 5/32” centers.
o Maximum sugar extraction efficiency when used as mash tun false bottom.
o Filters hops and adjuncts (orange peels, coriander seeds, etc.) away from dip tube when used as a boil kettle false bottom.
· 1-1/8” tall heavy duty stand (same material as false bottom) centered and welded directly to bottom side of false bottom.
o False bottom fits BELOW kettle spigot to maximize volume and extract efficiency.
o Hole is engineered into the stand at exact location to accept SS Brewing’s unique “slide-in” dip tube. This also helps anchor the false bottom in place.
o Offers additional filtration of grain particles or trub material from entering dip tube.
· Handle is included! (welded to top side of false bottom) for easy insertion and removal in one easy motion.
Click the FAQs link below for detailed information on our false bottoms, stands, and videos on:
§ Measuring your vessel to select the correct size Jaybird false bottom
§ Understanding the options that best fit your application
§ Learning more about INTEGRATED vs. SEPARATE false bottom stands
Kettle is shown for illustration purposes and is not included
PROUDLY MADE IN THE USA
