Cornelius (Corny) Ball Lock Gas In with Pressure Relief Valve for 3" Tri Clover Connection
Ball Lock “Gas In” with Pressure Relief Valve
3” Tri Clover Connection
304 Stainless Steel

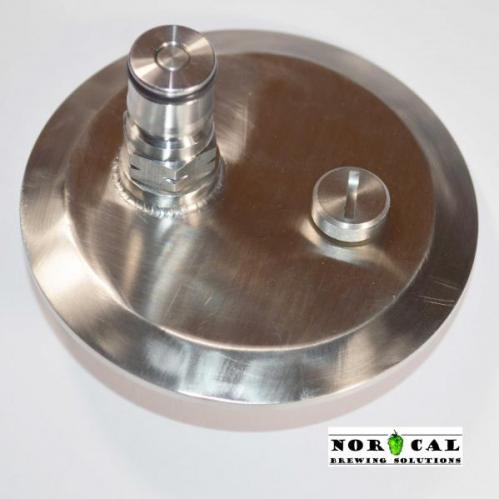

Stainless steel Ball Lock “Gas In” adapter provides Ball Lock Gas In through a 3” Tri Clover connection.
Built-in Pressure Relief Valve (PRV) helps protect the vessel in case CO2 regulator is cranked too high, or CO2 builds up inside vessel due to spontaneous fermentation.
This item works GREAT with the BrewMaster Chronical line of Ss Brewtech / Brewing Technologies fermenters!
Does NOT work with the “regular” Chronical series of Ss Chronical fermenters – they have a 1.5” Tri Clover port at the top of their lid.
CHARACTERISTICS and SPECIFICATIONS:
· 304 Stainless Steel for all metal components
· Use at the TOP of the fermentation vessel
· Use 3” Tri Clover clamp (not included) and gasket (not included) for sanitary, leak-free attachment
· Use with a standard “Gas In” Ball Lock (SKU# 0132 or SKU# 0134 – sold separately) to quickly connect and disconnect CO2 source
· Comes apart for cleaning and poppet replacement just like any standard ball lock post
USE CAUTION! We make no claims as to how high the pressure can go before vessel damage or human injury occurs.
PLEASE NOTE: The default spring installed in the PRV is rated at a range of 1-5 PSI. While the basic nature of this component does not allow you to “dial in” a specific PSI, you can increase and decrease resistance within the 1-5 PSI range by gently stretching out or depressing the spring.
A 10 PSI spring is available to purchase separately. (SKU #3790)
A 20 PSI spring is available to purchase separately. (SKU #3255)
